CHAPTER 2: DESIGN ENTRY
CREATING A PROJECT
42 ■ INTRODUCTION TO QUARTUS II ALTERA CORPORATION
Converting MAX+PLUS II Projects
The Convert MAX+PLUS II Project command (File menu) allows you to
select an existing MAX+PLUS II project’s Assignment & Configuration
File (.acf) or design file and convert it into a new Quartus II project that
contains all supported assignments and constraints from the original
MAX+PLUS II project. The Convert MAX+PLUS II Project command
automatically imports the MAX+PLUS II assignments and constraints,
creates new project files, and opens the new Quartus II project. Figure 6
shows the Convert MAX+PLUS II Project dialog box.

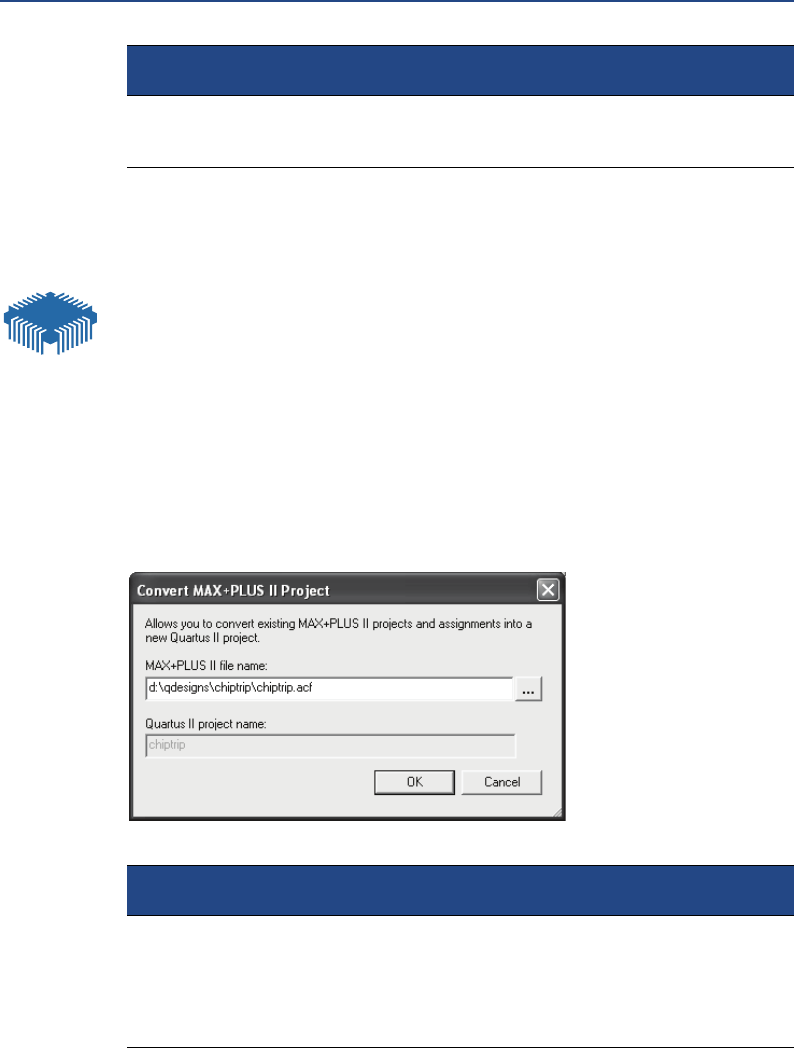

Figure 6. Convert MAX+PLUS II Project Dialog Box
f
For Information About Refer To
Using version-compatible databases “Quartus II Project Management,” in the
Quartus II Handbook, vol. 2, on the Altera
web site
f
For Information About Refer To
Converting MAX+PLUS II projects MAX+PLUS II Conversion module in the
Quartus II Tutorial
“Quartus II Design Flow for MAX+PLUS II
Users,” in the Quartus II Handbook, vol. 1,
on the Altera web site
