CHAPTER 8: TIMING ANALYSIS
VIEWING TIMING ANALYSIS RESULTS
ALTERA CORPORATION INTRODUCTION TO QUARTUS II ■ 155

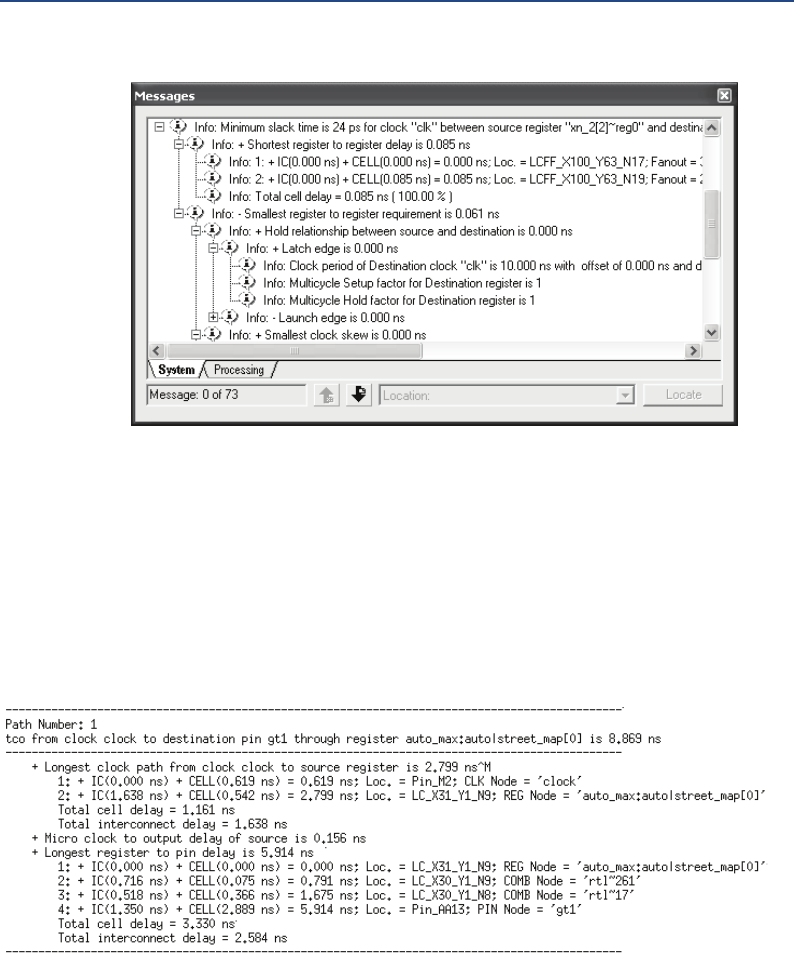

Figure 6. Output from List Paths Command
The list_path Tcl command, which you can use in the quartus_tan
module and the Quartus II Tcl Console, allows you to specify any point-to-
point path and view the delay information. You can specify the number of
paths to report, the type of path (including minimum timing paths), and use
wildcards to identify source and destination nodes. This option reports
information in the same manner as the List Paths command. See Figure 7.
Figure 7. Sample Output from list_path Command
