PC-Duo Master Guide
130

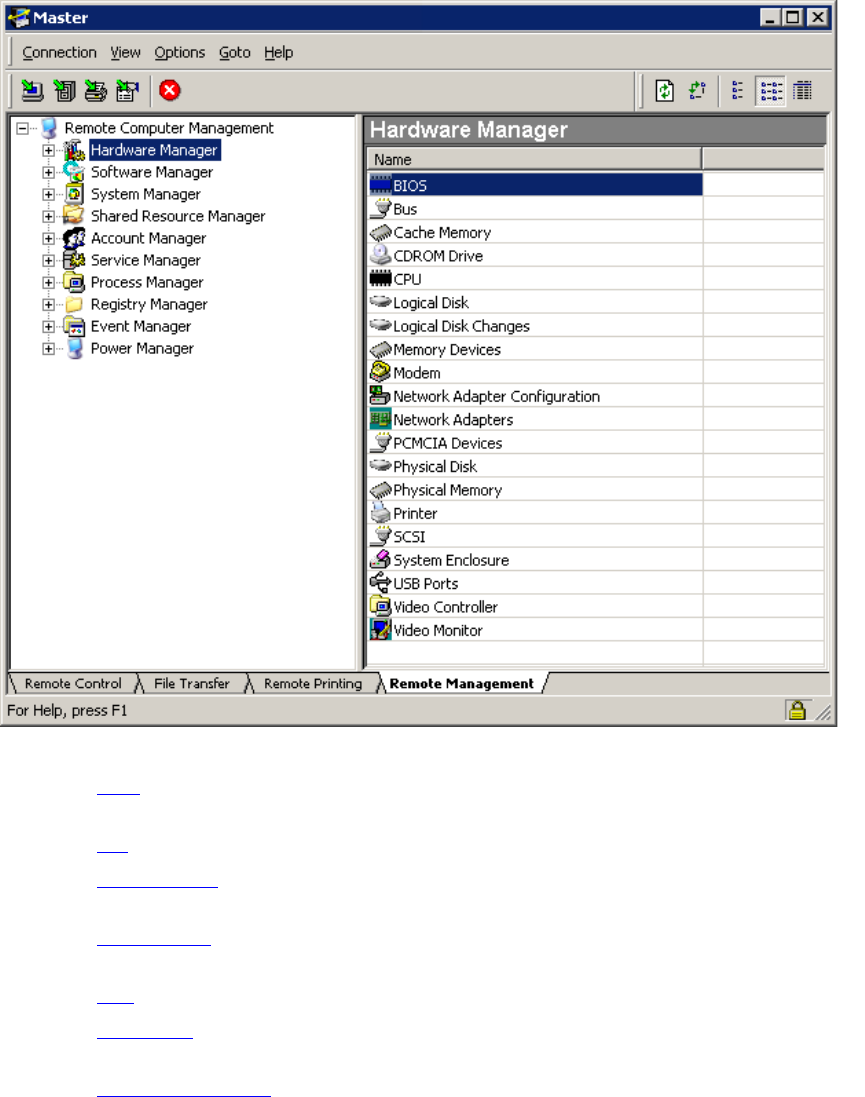

Hardware Manager
Hardware Manager provides you with a graphical view of physical devices and resources
available on the remote Host computer.
Select "BIOS" to view details about Basic Input/Output System (BIOS) on remote Host
computer.
Select "Bus" to view details about the physical system bus on remote Host computer.
Select "Cache Memory" to view details about internal and external cache memory on
the remote Host computer.
Select "CDROM Drive" to view details about the CDROM drive on the remote Host
computer.
Select "CPU" to view details about the CPU(s) on the remote Host computer.
Select "Logical Disk" to view details about data source(s) that resolve to actual local
storage device(s) on the remote Host computer.
Select "Logical Disk Changes" to view details about network storage devices that are
mapped as logical disks on the remote Host computer.
